Engineering Principles, Performance Factors, and Industrial Applications

1. Core Concepts and Key Technologies

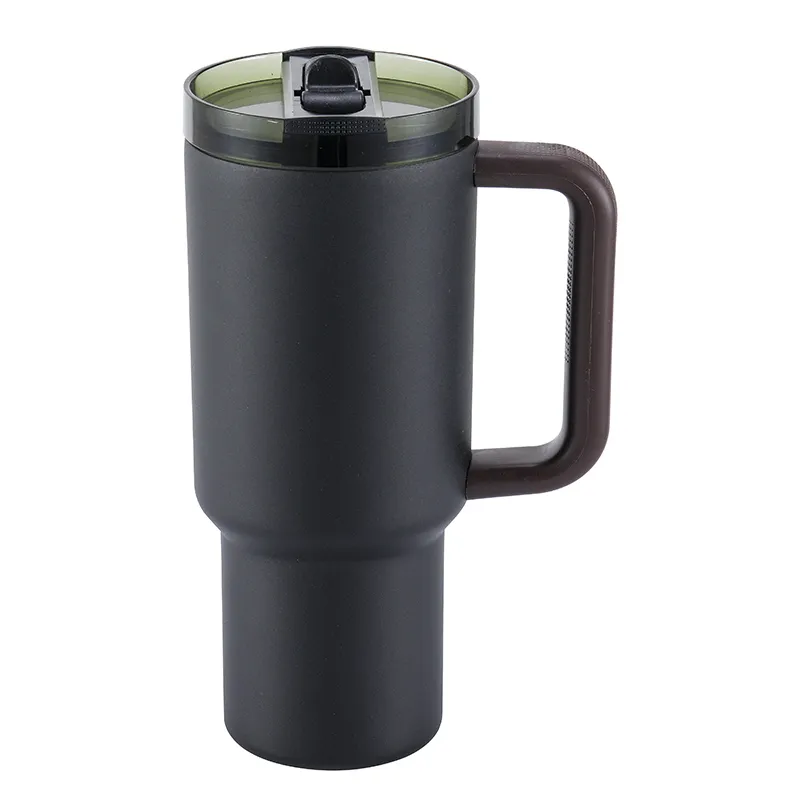

The demand for high-quality insulated drinkware has grown significantly in recent years, driven by office, home, and commuting needs. The insulated stainless steel Tumbler with a handle and flip-top lid exemplifies the integration of thermal engineering, materials science, and ergonomics to achieve a consistently high-performing beverage container. Its primary function is to maintain hot or cold beverage temperatures reliably while ensuring user convenience and spill prevention.

1.1 Vacuum Insulation Principle

At the core of its performance is vacuum insulation technology. A double-wall design separates the inner liner from the outer shell, with a vacuum gap that effectively minimizes heat transfer by conduction and convection. This design ensures beverages remain at desired temperatures for extended periods, typically ranging from several hours for hot coffee to prolonged cold retention for iced drinks.

1.2 Thermal Radiation Control

While conduction and convection are primary modes of heat loss, radiative transfer can significantly impact performance if not addressed. Many high-quality tumblers employ polished inner surfaces or thin reflective coatings to limit radiative heat exchange. In addition, some designs apply low-emissivity coatings to reduce energy loss, further stabilizing beverage temperatures.

1.3 Leak-Proof Flip-Top Lid Engineering

The flip-top lid combines convenience and safety. Effective sealing relies on high-quality food-grade silicone or thermoplastic elastomers (TPE), which maintain elasticity under thermal cycling and repeated use. Precision in manufacturing tolerances is critical to prevent leakage and ensure that the lid operates reliably in office, commuting, and home environments.

1.4 Ergonomic Handle Design

Incorporating a handle enhances user comfort and grip stability, particularly for hot beverages. From an engineering perspective, the handle must avoid creating thermal bridges that could compromise insulation. Optimal positioning and shape also reduce strain on the wrist and improve overall portability.

2. Product Structure, Performance, Materials, and Manufacturing

2.1 Structural Overview

A typical Insulated Stainless Steel Tumbler consists of several integral components:

Inner liner: This beverage-contact surface is generally made of 304 or 316 stainless steel, balancing corrosion resistance, mechanical strength, and food safety compliance.

Outer shell: Provides mechanical protection, aesthetic appeal, and additional thermal isolation.

Vacuum layer: The insulating space between inner and outer shells.

Lid assembly: The flip-top mechanism and sealing system prevent leaks while allowing controlled liquid flow.

Handle interface: Ergonomically designed, secured either through welding or mechanical attachment for repeated stress resistance.

2.2 Material Selection

Material quality directly affects thermal retention, durability, and regulatory compliance:

304 Stainless Steel: Standard in consumer-grade tumblers, offering corrosion resistance, affordability, and mechanical strength.

316 Stainless Steel: Employed for more demanding applications due to enhanced resistance to chloride-induced corrosion.

Sealing materials: Food-grade silicone or TPE ensures flexibility, thermal stability, and resistance to chemical degradation during repeated usage cycles.

2.3 Manufacturing Process

Deep Drawing or Hydroforming: Shapes the inner and outer shells with precision to ensure uniform thickness and structural integrity.

Laser or TIG Welding: Seals the vacuum chamber, maintaining both mechanical strength and insulation efficacy.

Vacuum Evacuation and Sealing: Controlled extraction of air to form a low-pressure layer between the inner and outer walls.

Surface Treatment: Electropolishing or powder coating improves corrosion resistance, tactile quality, and aesthetic finish.

Meticulous quality control at each stage—particularly vacuum integrity testing, lid sealing verification, and handle load assessment—ensures consistent performance across production batches.

3. Factors Influencing Quality and Performance

Several factors determine the efficiency, reliability, and durability of insulated tumblers:

Vacuum Integrity: Even minor air infiltration compromises thermal retention, reducing the duration of effective insulation.

Lid Tolerances and Seal Quality: Precision alignment and durable sealing materials are essential to prevent leakage, especially during transport.

Handle Ergonomics and Strength: Poor design may cause user discomfort or structural failure.

Material Uniformity: Stainless steel grade consistency, surface finishing, and seal quality affect long-term corrosion resistance and mechanical performance.

Assembly Accuracy: Misaligned shells or improper welding can undermine both thermal performance and structural integrity.

Thermal Bridge Prevention: Components that inadvertently conduct heat or cold from the inner liner to the outer shell reduce insulation efficiency.

B2B purchasers often rely on standardized testing protocols, including thermal retention analysis, vacuum stability testing, mechanical fatigue tests for handles, and leak detection procedures, to verify consistent quality.

4. Common Operational Issues

Even well-engineered tumblers may encounter common challenges:

Leakage: Caused by worn seals, lid misalignment, or improper closure.

Inconsistent Thermal Retention: Variability across production batches may lead to reduced efficiency.

Cleaning Difficulties: Flip-top lids and complex seals may trap residues or mold if not properly maintained.

Handle Wear: Repeated stress can lead to loosening or detachment if material selection or design is inadequate.

Surface Corrosion: Improper cleaning or exposure to acidic beverages can degrade stainless steel over time.

Mitigating these issues requires rigorous design validation, material quality assurance, and clear usage guidelines.

5. Application Scenarios and Use Cases

Insulated stainless steel tumblers with consistent quality designs have diverse applications:

Office Environments: Maintaining coffee or tea temperature during desk work or meetings.

Commuting Professionals: Leak-proof beverage transport in vehicles, backpacks, or public transit.

Home Use: Supporting remote work, household routines, and leisure activities.

Corporate Sustainability Initiatives: Reducing disposable cup consumption with standardized reusable containers.

Outdoor and Field Applications: Durable insulation for engineers, service personnel, or field operators requiring hot or cold beverages under variable conditions.

Hospitality and Service Industry: Standardized tumblers improve beverage presentation and consistency in cafes, lounges, and conference centers.

In all these scenarios, the combination of a handle, flip-top lid, and double-wall vacuum insulation ensures usability, safety, and thermal performance.

6. Current Trends and Future Development

The insulated tumbler market is evolving toward improved usability, durability, and environmental sustainability:

Modular Lid Systems: Removable components facilitate cleaning, replacement, and long-term maintenance.

Ergonomic Enhancements: Refined handle designs, textured grips, and optimized weight distribution improve comfort and portability.

Surface Durability: Anti-scratch coatings, fingerprint-resistant finishes, and antimicrobial treatments enhance hygiene and longevity.

Lifecycle-Oriented Design: Emphasis on recyclability, extended performance, and reduced environmental footprint.

Smart Beverage Integration: Emerging technologies include temperature monitoring or digital indicators, offering B2B applications in safety and process control.

Material Innovation: Research into hybrid coatings, sustainable stainless steel alloys, and advanced sealing compounds aims to improve both performance and environmental impact.

Future development focuses on measurable thermal consistency, modular maintenance, and sustainable material solutions, meeting the expectations of corporate buyers and end users alike.

7. FAQ (Frequently Asked Questions)

Q1: How long can the tumbler maintain beverage temperature?

High-quality vacuum tumblers typically retain heat or cold for several hours, depending on lid integrity, vacuum stability, and ambient conditions.

Q2: Are flip-top lids reliable for daily commuting?

Precision-engineered lids with durable seals effectively prevent leakage during transit.

Q3: Does the handle compromise thermal efficiency?

Properly isolated handles do not affect insulation. Only poorly integrated attachments can create thermal bridges.

Q4: What is the recommended cleaning procedure?

Flip-top lids should be disassembled periodically. The inner and outer stainless steel surfaces can be cleaned with mild detergents, avoiding abrasive materials.

Q5: How can manufacturers ensure consistent quality across batches?

By implementing strict quality control protocols, including vacuum retention testing, thermal performance evaluation, and mechanical fatigue assessment for handles and lids.

Conclusion

The insulated stainless steel tumbler with a handle and flip-top lid represents a high-precision engineering solution that balances thermal performance, ergonomic handling, and consistent quality. Its double-wall vacuum construction, reliable lid sealing, and ergonomic handle make it suitable for offices, homes, commuting professionals, and industrial applications. By prioritizing vacuum integrity, material quality, precise assembly, and human-centered design, manufacturers provide a product that meets stringent B2B and consumer performance standards. Ongoing innovation in modular lids, surface durability, and sustainable materials ensures that these tumblers remain a practical, long-lasting, and environmentally responsible solution for daily beverage management.
